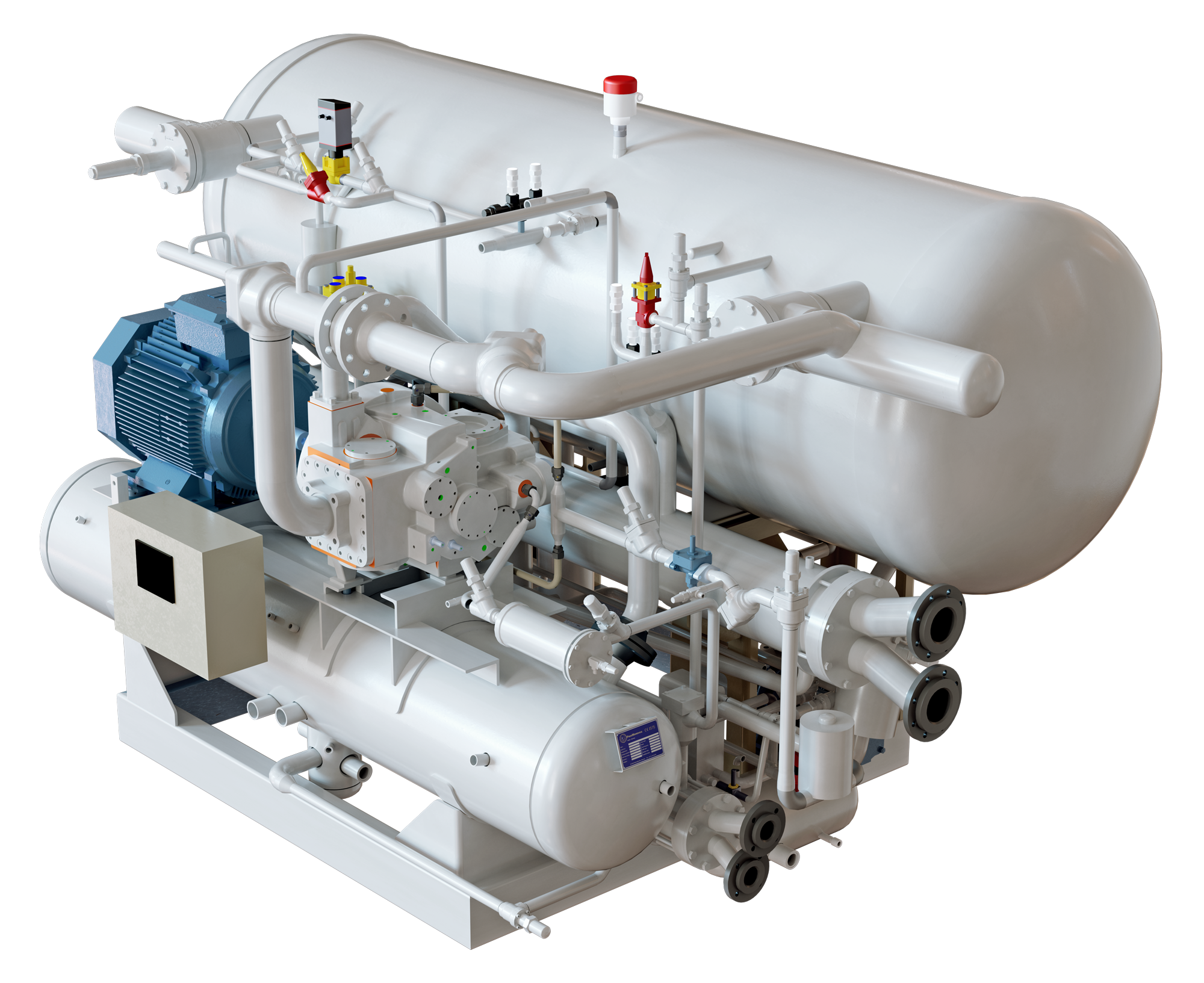

Compact freezer plant with ammonia as refrigerant
FrioPack is a complete pump-circulated plant for cooling and freezing applications. These high-quality units are delivered skid-mounted with screw compressor, liquid separator, liquid pumps, condenser, oil separator, oil cooler, valves and automation system.
FrioPack offers high levels of flexibility, performance and energy efficiency for cooling and freezing applications, as well as low maintenance costs with reliable components.
With an extremely compact design, this freezing plant is easy to install — whether on a fishing boat or in an onshore plant.
Features and benefits
A 25 per cent increase in efficient freezing process preserves the original quality of the fish and extends their shelf lifetime during low-temperature storage.Our SuperFreeze freezing plants with CO2 as the refrigerant ensure effective freezing of fish and other foodstuffs on fishing vessels or ashore. These facilities are also suitable for large cold stores and other freezing applications.
Quality improvementOur customers experience substantial improvements in quality because they can achieve lower temperatures – down to ‑50°C – in their freezing plants and thereby faster freezing.
Freezing faster increases capacitySuperFreeze cuts freezing time by 25 per cent. That increases freezing capacity correspondingly and eliminates this as a bottleneck. In addition, defrosting the fish when removing it from the plate freezer is considerably faster. That helps to enhance product quality even further.
Initial freezing represents a bottleneck on fishing vessels. Speeding up this process enhances efficiency and cuts operating time, which gives savings through reduced fuel costs.

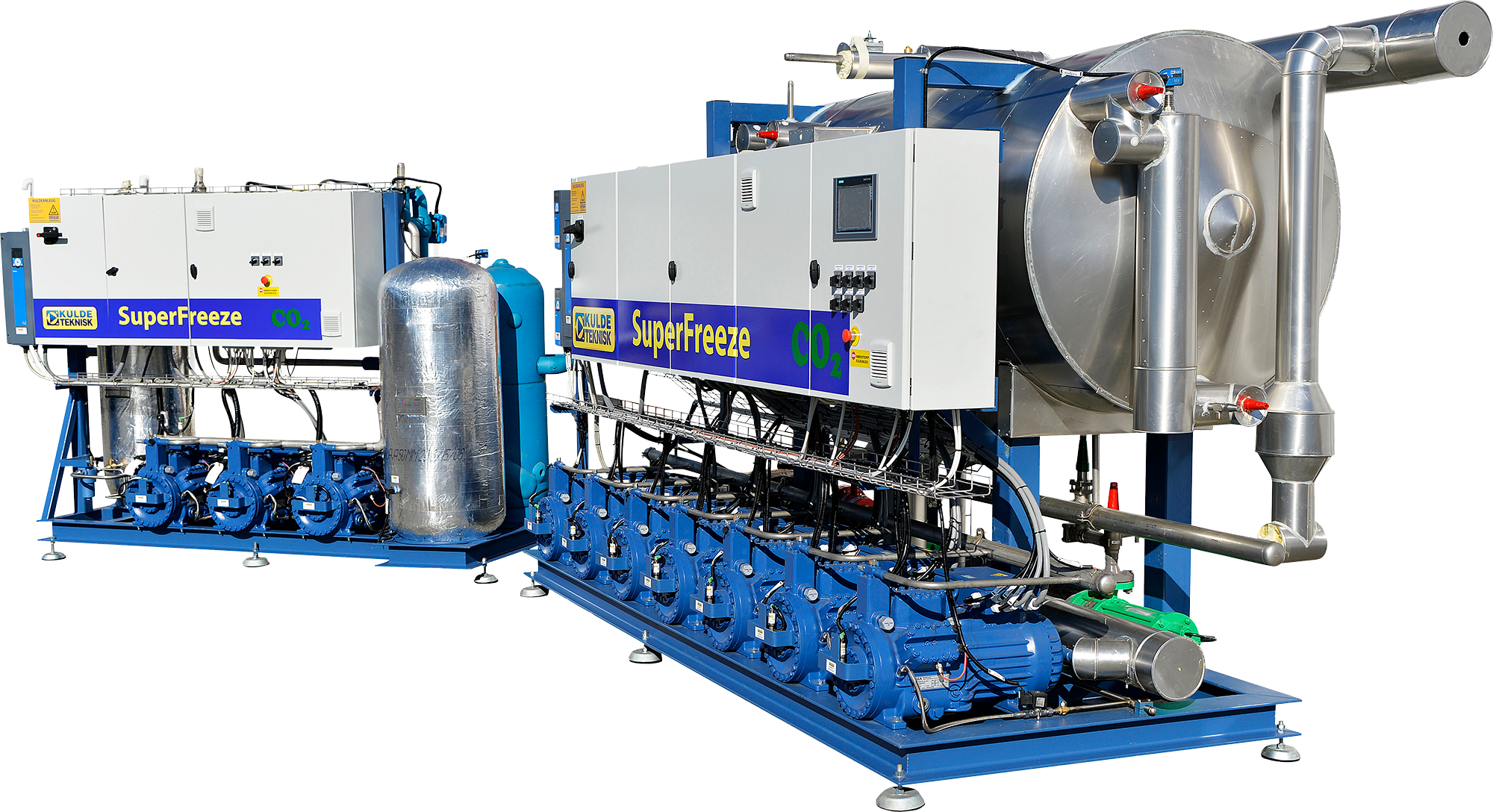

CO2 as a refrigerant
The SuperFreeze system is based on CO2 as the refrigerant and has been designed for operation at temperatures down to ‑50°C, with outputs from 50–300kW. CO2 has become an increasingly popular refrigerant choice for industrial and marine systems. This is because it is both a natural product and non-toxic. Nor is it otherwise hazardous in moderate concentrations. Heat recovery from CO2 is very favourable.

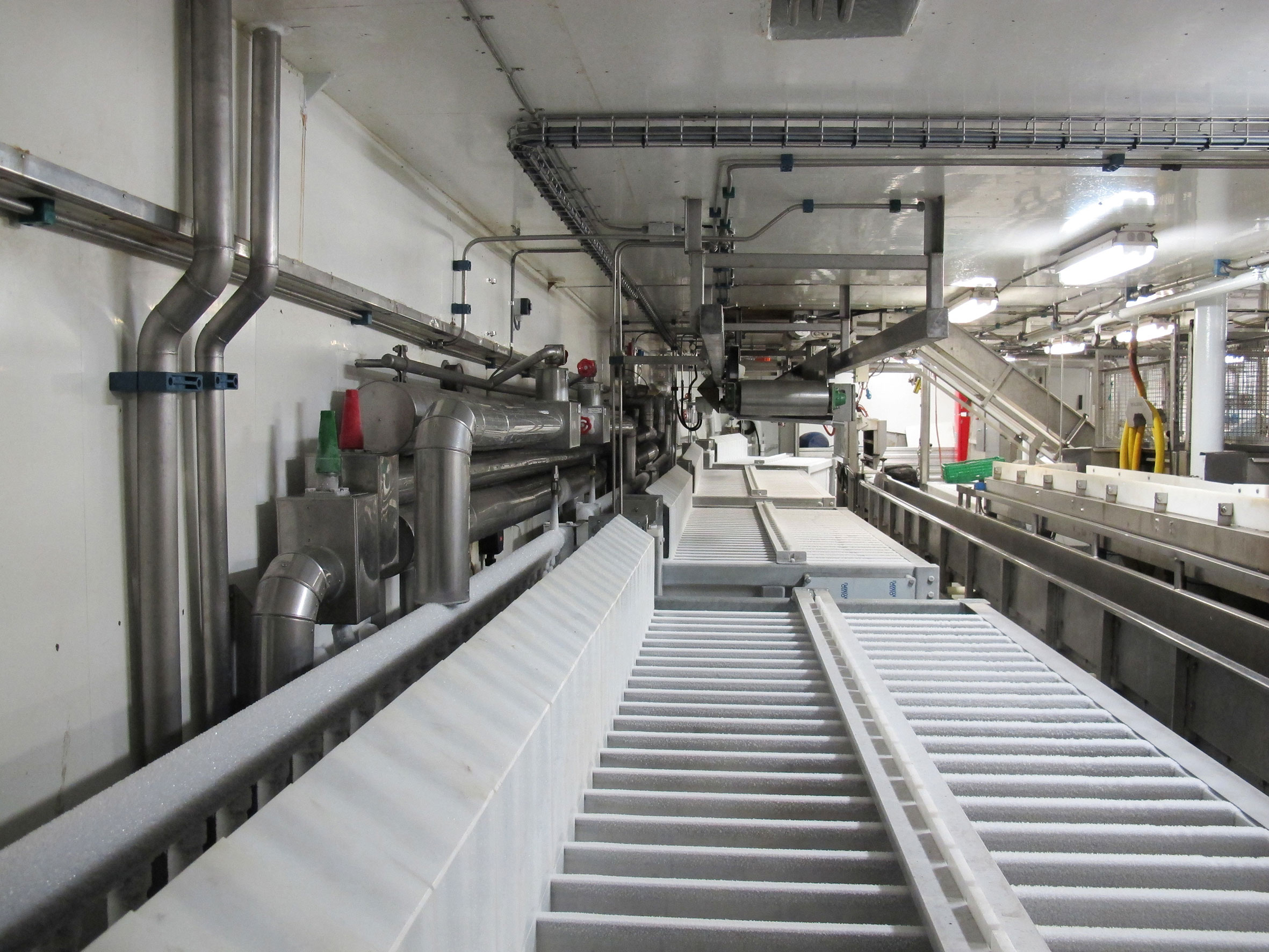

SuperFreeze is a pump-circulated plant, can be connected to plate, tunnel and IQF freezers as well as cold stores, and comes with a very effective hot gas defrosting system. Plants are delivered as compact units, but can also be supplied split into two or more sections. Seawater-cooled or air-cooled with outdoor gas cooler. Delivered for 3x400V, 50Hz as standard, but can also be tailored for other power supplies.
SuperFreeze is delivered complete with control system, compressors, valves, filters, automation and full internal cabling. Simple operation via a touchscreen display, with opportunities for remote control over the internet.
FrioComp is a screw compressor unit for cooling and freezing applications. High-quality units are delivered complete, skid-mounted with screw compressor, oil separator, oil cooler, valves and automation.
FrioComp offers high levels of flexibility, performance and energy efficiency for cooling and freezing applications, as well as low maintenance costs with reliable components.
Delivered complete as skid-mounted, the compressor unit is easy to install — whether on a fishing boat or in an onshore plant.
Features and benefits
